THE P7100 JUST GOT SMARTER.
The EPC E-7100 brings electronic control to one of the most proven mechanical injection pumps ever built.

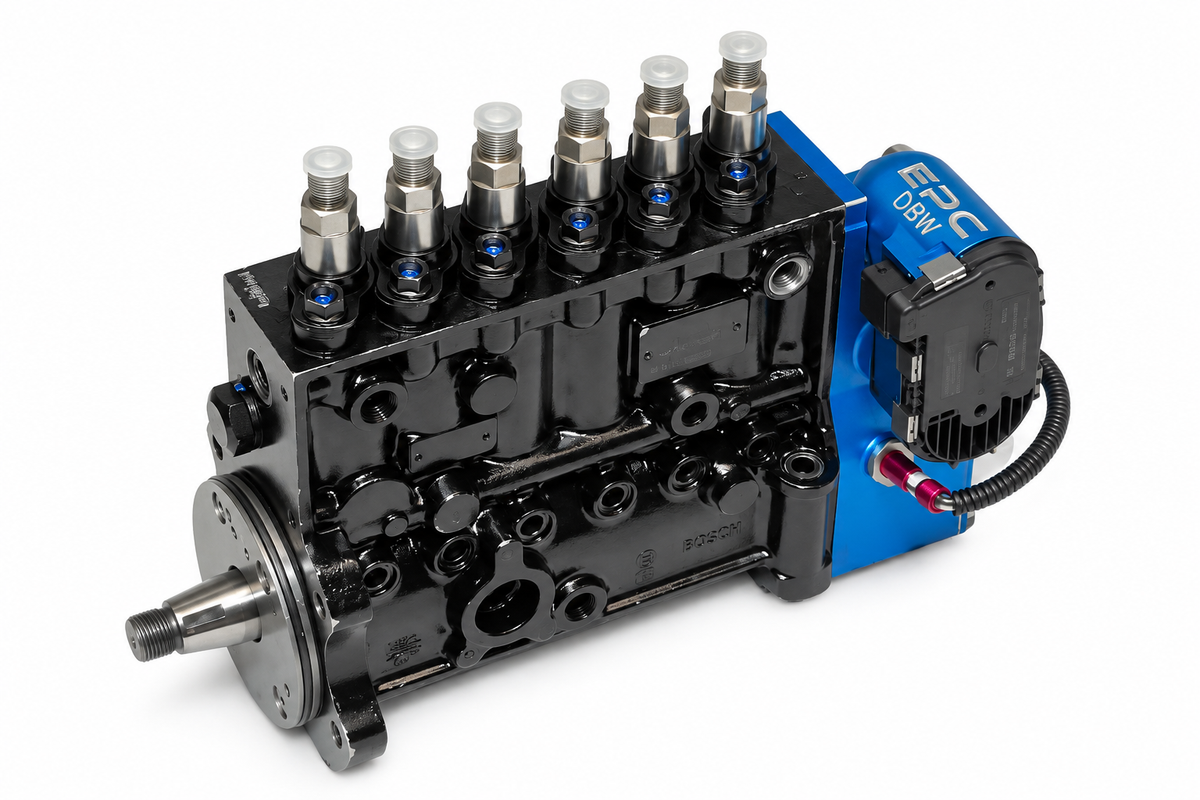

The E-7100 is a replacement governor housing and electronic control system for the Bosch P7100 injection pump.
It replaces the factory governor housing and mechanical governor system while allowing you to retain and reuse your existing P7100 fueling components.
WHAT IS THE E-7100?
The E-7100 is a replacement governor housing with integrated electronic control.
It replaces the factory P7100 governor housing and mechanical governor assembly, including more than 200 associated mechanical components.
Important: The E-7100 does not include the fueling portion of the P7100. Your existing fueling components are retained and reused.
ELECTRONIC CONTROL. MECHANICAL INJECTION.
The E-7100 allows your P7100 to be controlled electronically through a drive-by-wire throttle signal.
The system is designed to work with any aftermarket ECU with drive-by-wire support.
You choose the ECU and tuner. The E-7100 provides the electronic control interface while your existing P7100 fueling system remains in place.
ENGINE MANAGEMENT INPUTS
Depending on your ECU and tuning setup, the E-7100 can be integrated with inputs such as:
- EGT
- AFR
- Boost pressure
- Fuel pressure
- Engine RPM
- Throttle position
- Transmission data
- Other configurable engine-management inputs
ADVANCED CONTROL
The E-7100 opens the door to engine-control strategies that aren't possible with a conventional mechanical governor.
Your tuner can develop fueling and engine-response strategies around the conditions that matter to your application.
- EGT-based control strategies
- AFR-based control strategies
- Boost-based control strategies
- Fuel-pressure feedback
- RPM-based control
- Transmission feedback
MODERN FEATURES FOR THE 6BT
REV LIMITER
Control maximum engine RPM electronically rather than relying solely on mechanical governor characteristics.
ELECTRONIC THROTTLE
Control the P7100 using a drive-by-wire throttle signal.
CRUISE CONTROL
Integrate cruise-control functionality through your aftermarket ECU where supported.
ADVANCED AIRFLOW & FUELING CONTROL
Build control strategies around EGT, AFR, boost and other available engine-management inputs.
TRANSMISSION INTEGRATION
Use transmission feedback as part of the engine-control strategy where supported by your ECU and tuning system.
WORKS WITH YOUR AFTERMARKET ECU
The E-7100 is designed to work with any aftermarket ECU with drive-by-wire support.
You choose the ECU. You choose the tuner. Your tuner develops the control strategy around your engine, transmission and application.
The E-7100 is not tied to a proprietary tuning ecosystem.
INSTALLATION
Installation requires removal of the factory P7100 governor housing and removal of the factory timing flag.
The conversion can be performed with the injection pump still installed on the vehicle.
After installation, the E-7100 housing must be correctly timed to the pickup in the new housing.
Correct installation and timing are essential for proper operation.
WHAT YOU KEEP
Your existing P7100 fueling components are retained and reused.
- Existing P7100 fueling components
- Existing pump body and fueling system
- Your preferred aftermarket ECU
- Your preferred tuning platform
WHAT THE E-7100 REPLACES
- Factory governor housing
- Mechanical governor assembly
- Timing flag
- More than 200 associated mechanical governor components
WHAT'S INCLUDED
- EPC E-7100 electronic governor housing
- Integrated electronic control components
- Required E-7100 installation hardware
WHAT'S NOT INCLUDED
- P7100 injection pump
- P7100 fueling components
- Aftermarket ECU
- Drive-by-wire throttle pedal or throttle hardware
- ECU tuning or calibration
- Installation labor
TUNING REQUIREMENTS
The E-7100 requires an aftermarket ECU capable of controlling a drive-by-wire throttle system.
ECU configuration and calibration are the responsibility of the installer and/or qualified tuner.
EPC does not require a proprietary tuning platform. The E-7100 is designed to integrate with aftermarket ECU systems that support the required drive-by-wire functionality.
IMPORTANT INSTALLATION NOTE
The E-7100 is a replacement governor housing and electronic control system, not a complete P7100 injection pump.
Installation requires:
- Removal of the factory governor housing
- Removal of the factory timing flag
- Installation of the E-7100 housing
- Correct timing of the injection pump to the E-7100 pickup
- ECU configuration and calibration
If you are unsure about installation or timing procedures, installation should be performed by a qualified diesel injection specialist.
THE P7100 JUST GOT SMARTER.
Mechanical injection isn't going anywhere.
We're giving it electronic control.
EPC E-7100
Mechanical injection. Electronic control. Modern capability.
